1 - 16 of 16
Description
Price
Quantity

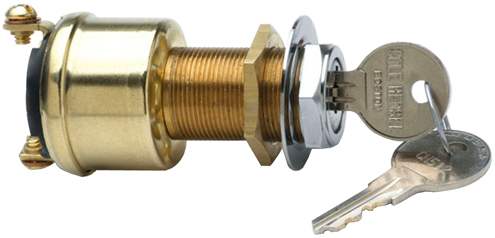

KEY SWITCH 2 POSITION IGNITION
Cole Hersee M489
2-position marine ignition switch.
Key removable in off position only.
No spring return.
O-ring seal in stem, brass case material.
Mounting panel thickness: 1".
Ignition/Run: 10A / 12V DC.
Ignition-proof: SAE J259.
Key removable in off position only.
No spring return.
O-ring seal in stem, brass case material.
Mounting panel thickness: 1".
Ignition/Run: 10A / 12V DC.
Ignition-proof: SAE J259.
Item#:
COHM489
66.3700
56.42
EACH
Call to Order
KEY SWITCH 2 POSIT IGNITION BP
Cole Hersee M489-BP
2-position marine ignition switch.
Key removable in off position only.
No spring return.
O-ring seal in stem, brass case material.
Mounting panel thickness: 1".
Ignition/Run: 10A / 12V DC.
Ignition-proof: SAE J259.
Blister packed.
Key removable in off position only.
No spring return.
O-ring seal in stem, brass case material.
Mounting panel thickness: 1".
Ignition/Run: 10A / 12V DC.
Ignition-proof: SAE J259.
Blister packed.
Item#:
COHM489BP
62.7800
60.24
EACH

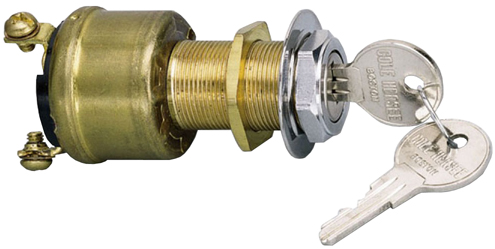

SWITCH IGNITION 3 POS
Cole Hersee M550
12 volt 3 position ignition switch Key removes only in Off, spring return. Electrical rating: 12 volt DC - 10A ignition/5A start. 3 brass screw terminals - chrome plated brass face nut. Brass: case/mounting hardware. Brass mount stem: 13/16"-24 long 1-7/32". Fits panels up to 1" thick. Weight: .1 lb
Item#:
COHM550
62.9800
60.45
EACH
SWITCH IGNITION 3 POS BP
Cole Hersee M550-BP
Marine ignition switch. Three positions: Off/Ignition/Start. Coded tumbler lock (includes two keys, #83379). All-brass construction. Three brass screw terminals. Blister packaged.
Item#:
COHM550BP
63.1200
60.57
EACH
MARINE EMERGENCY CUTOFF SWITCH
Cole Hersee M597
Marine SPST single pole single throw emergency cutoff switch provides added safety for boat operators.
Strong self-retracting coiled 4'-3" lanyard has a snap for attachment to the operator.
Kills ignition circuit if the boater falls overboard.
Switch housing dimensions 2-3/4" x 2".
Requires a space of 1/2" behind the panel.
Silver contacts.
2 16AWG wire leads.
Rubber coated toggle switch is sealed to IP-66 to protect against salt spray and water ingress.
Rating: 10A at 12-24V DC.
Item#:
COHM597
75.5200
64.19
EACH
Marine ignition switch. Four positions: Off/Ignition/Start. Coded tumbler lock (includes two keys, #83379). All-brass construction. Three brass screw terminals. Weight: .1 lbs.
Item#:
COHM712
62.9500
60.39
EACH

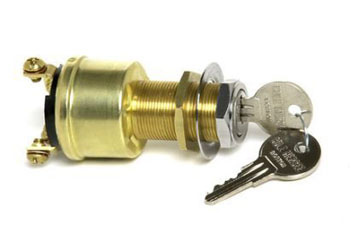

KEY SWITCH 4 POSIT IGNITION BP
Cole Hersee M712-BP
4 position ignition switch suitable for marine environments.
Accessories - Off - Ignition/Accessories - Start.
Spring return to ignition.
Key removable in off position only.
4 screw terminals
O-ring seal in stem.
Ignition run: 10A / 12V DC.
Start: 5A / 12V DC.
Mounting panel thickness: 1".
Ignition proof: SAE J259.
Blister packaged.
Accessories - Off - Ignition/Accessories - Start.
Spring return to ignition.
Key removable in off position only.
4 screw terminals
O-ring seal in stem.
Ignition run: 10A / 12V DC.
Start: 5A / 12V DC.
Mounting panel thickness: 1".
Ignition proof: SAE J259.
Blister packaged.
Item#:
COHM712BP
65.3200
62.69
EACH
SWITCH 3-POSITION IGNITION DP
Three-position ignition switch
3 position ignition switch.
Off-Ignition-Start
Maximum panel thickness: 1-1/8"
Ignition: 15A @ 12V DC.
Solenoid: 30A @ 12V DC.
Includes two keys.
Constructed of stamped brass.
Item#:
SDG420350-1
Manufacturer:
Sea-Dog Corp
36.5000
25.91
EACH
SWITCH 3 POSITION IGNIT KEYED
Magneto ignition switch
3 position magneto-style ignition switch for off, ignition, and start functions.
Ignition (accessory) circuit is not activated in the solenoid (start) position.
Maximum panel thickness: 1-1/8".
5 screw terminal electrical connection.
Ignition: 15A @ 12 VDC.
Solenoid: 30A @ 12 VDC.
Constructed of stamped brass.
Includes two keys.
Item#:
SDG420351-1
Manufacturer:
Sea-Dog Corp
36.5000
25.91
EACH
SWITCH IGNIT 4 POS SCREW DP
Four-position ignition switch
4 position ignition switch for accessory, off, ignition, and start functions.
13/16" diameter shaft.
Maximum panel thickness: 1-1/8".
Ignition: 15A @ 12 VDC.
Solenoid: 30A @ 12 VDC.
Accessory: 15A @ 12 VDC.
Constructed of polypropylene.
Includes two keys.
Screw terminal wire connection.
Item#:
SDG420375-1
Manufacturer:
Sea-Dog Corp
24.1300
17.13
EACH
SWITCH IGNIT 4 POS BLADE DP
Four-position ignition switch
4 position ignition switch for accessory, off, ignition, and start functions.
13/16" diameter shaft.
Maximum panel thickness: 1-1/8".
Ignition: 15A @ 12 VDC.
Solenoid: 30A @ 12 VDC.
Accessory: 15A @ 12 VDC.
Constructed of polypropylene.
Includes two keys.
Blade terminal wire connection.
Item#:
SDG420379-1
Manufacturer:
Sea-Dog Corp
25.0500
17.78
EACH
Call to Order

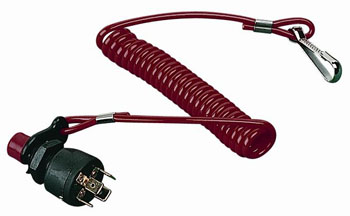

SWITCH KILL UNIVERSAL DP
Universal kill switch assembly
Marine emergency cut-off universal kill switch attaches to your life vest.
Designed to instantly cut battery power when detached.
Dual circuitry allows kill switch to be wired for either ignition kill or magneto kill depending on the application.
Includes a lanyard approximately 15" when coiled and 48" when stretched.
Constructed of weatherproof injection molded nylon and Delrin with 1/4" brass terminals.
Mounting hole is 5/8" in diameter, maximum panel thickness: 3/8".
Voltage: 12V DC, maximum 5A draw.
Item#:
SDG420488-1
Manufacturer:
Sea-Dog Corp
18.5500
13.17
EACH
LANYARD F/ KILL SWITCH DP
Lanyard for kill switch
Kill switch lanyard only.
Lanyard is approximately 15" when coiled and 48" when stretched.
For use with SeaDog 420486, 420486-1, 420487, 420487-1, 420488, & 420488-1 engine kill switches.
Item#:
SDG420489-1
Manufacturer:
Sea-Dog Corp
8.3300
5.92
EACH
LANYARD F/ KILL SW 7 KEY DP
Kill switch lanyard
Injection molded nylon and delrin. Fits seven different manufacturer's kill switches: -Johnson - Evinrude - Mercury - Yamaha - Honda - Tohatsu - Suzuki - Nissan. Length: 50".
Item#:
SDG420495-1
Manufacturer:
Sea-Dog Corp
11.1100
7.89
EACH

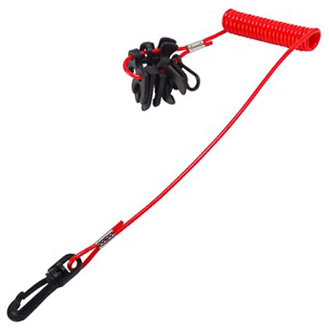

Universal kill switch set on a lanyard.
Includes keys for: Johnson, Evinrude, Mercury, Yamaha, Honda, Tohatsu, Suzuki, Kawasaki,
OMC and Nissan.
Length: 50".
Display packaged.
Includes keys for: Johnson, Evinrude, Mercury, Yamaha, Honda, Tohatsu, Suzuki, Kawasaki,
OMC and Nissan.
Length: 50".
Display packaged.
Item#:
SDG420496-1
Manufacturer:
Sea-Dog Corp
17.8900
12.71
EACH

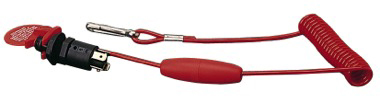

SWITCH KILL UNI FLOAT LNYRD DP
Universal kill switch
Marine emergency cut-off universal kill switch with floating lanyard.
Designed to instantly cut battery power when detached.
Dual circuitry allows kill switch to be wired for either ignition kill or magneto kill depending on the application.
Includes a floating lanyard approximately 15" when coiled and 48" when stretched.
Constructed of weatherproof injection molded nylon and Delrin with 1/4" brass terminals.
Mounting hole is 5/8" in diameter, maximum panel thickness: 3/8".
Voltage: 12V DC, maximum 5A draw.
Item#:
SDG420498-1
Manufacturer:
Sea-Dog Corp
25.3400
17.99
EACH
1 - 16 of 16
