GAUGE ASSEMBLY FOR 12 HIGH

Gauge float assembly - 12H

Gauge float assembly - 12H. For use with Moeller fuel tanks. Manufacturer number: 031004-10. Weight: .5 lb.

Item#:

MOE031004-10

Manufacturer:

Moeller Marine

14.0200

11.92

EACH

Call to Order

Select to Compare

Gathers fuel level information. Connects to dash mounted gauge without a conversion capsule. Measure tank depth and make the swingarm the correct length. Internal components will not rust or corrode. Float rotates easily in 90° increments. For 6" to 12" deep tanks.

Item#:

MOE035722-10

Manufacturer:

Moeller Marine

33.2900

28.30

EACH

Qty:

Select to Compare

SENDING UNIT ELEC 035729-10

Electric sending unit

Gathers fuel level information. Connects to dash mounted gauge without a conversion capsule. Measure tank depth and make the swingarm the correct length. Internal components will not rust or corrode. Float rotates easily in 90° increments. For 12" to 24" deep tanks.

Item#:

MOE035729-10

Manufacturer:

Moeller Marine

38.0500

32.34

EACH

Qty:

Select to Compare

MECHANICAL SENDER 035750-10

Mechanical sending unit

Direct sight gauge. Gathers fuel level information with the float. Accurate gauge will fluctuate as the fuel "sloshes". Length: 7-1/2".

Item#:

MOE035750-10

Manufacturer:

Moeller Marine

78.4900

66.72

EACH

Qty:

Select to Compare

MECHANICAL SENDER 035757-10

Mechanical sending unit

Direct sight gauge. Gathers fuel level information with the float. Accurate gauge will fluctuate as the fuel "sloshes". Length: 17-3/4".

Item#:

MOE035757-10

Manufacturer:

Moeller Marine

86.8100

73.79

EACH

Qty:

Select to Compare

MECHANICAL SENDER 035758-10

Mechanical sending unit

Direct sight gauge. Gathers fuel level information with the float. Accurate gauge will fluctuate as the fuel "sloshes". Length: 22".

Item#:

MOE035758-10

Manufacturer:

Moeller Marine

88.0100

74.81

EACH

Qty:

Select to Compare

CONV CAPSULE DIR SIG 035759-10

Conversion capsule fuel gauge

Direct-sight mechanical tank sending unit.
A replacement fuel gauge.

Item#:

MOE035759-10

Manufacturer:

Moeller Marine

21.3000

18.11

EACH

Qty:

Select to Compare

SENDING UNIT REED SWITCH 17.5"

Reed switch sending unit

Reed switch senders dramatically reduce "slosh fluctuations" which are inherent with swingarm units.

Sender top-mounts in aluminum, plastic, or stainless steel fuel tanks.

Reed switch materials provide superior corrosion protection, both inside and outside the tank.

Designed for gas, ethanol, diesel, biodiesel and non-potable water use.

Black wire is ground.

For tanks up to 17.5" deep.

Item#:

MOE035767-10

Manufacturer:

Moeller Marine

129.6400

110.19

EACH

Call to Order

Select to Compare

SENDING UNIT REED SWITCH 22"

Reed switch sending unit

Designed for use in gasoline applications. All reed switch senders are pre-calibrated. Durable SS construction. Gasket and screws (5) included. 22".

Item#:

MOE035770-10

Manufacturer:

Moeller Marine

159.1600

135.29

EACH

Qty:

Select to Compare

CAP W/GAUGE 12.25"

Replacement fuel tank cap

Fuel cap with sight gauge and vent. Length: 12-1/4".

Item#:

MOE305194

Manufacturer:

Moeller Marine

27.3300

23.23

EACH

Qty:

Select to Compare

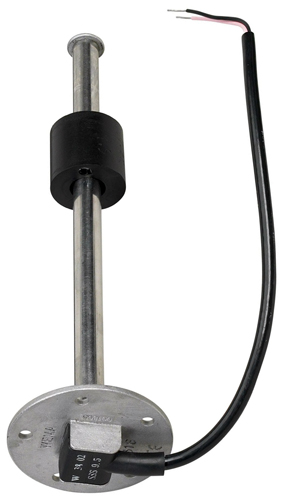

SENDING UNIT REED SWITCH 8"

Reed switch sending unit

Reed switch senders dramatically reduce "slosh fluctuations" which are inherent with swingarm units.

Sender top-mounts in aluminum, plastic, or stainless steel fuel tanks.

Reed switch materials provide superior corrosion protection, both inside and outside the tank.

Designed for gas, ethanol, diesel, biodiesel and non-potable water use.

Black wire is ground.

For tanks up to 8" deep.

Item#:

MOE35761-10

Manufacturer:

Moeller Marine

92.7700

78.85

EACH

Qty:

Select to Compare

SENDING UNIT REED SWITCH 10"

Reed switch unit

Reed switch senders dramatically reduce "slosh fluctuations" which are inherent with swingarm units.

Sender top-mounts in aluminum, plastic, or stainless steel fuel tanks.

Reed switch materials provide superior corrosion protection, both inside and outside the tank.

Designed for gas, ethanol, diesel, biodiesel and non-potable water use.

Black wire is ground.

For tanks up to 10" deep.

Item#:

MOE35762-10

Manufacturer:

Moeller Marine

93.8600

79.78

EACH

Call to Order

Select to Compare

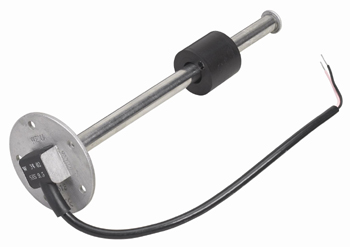

SENDING UNIT REED SWITCH 12"

Reed switch unit

Reed switch senders dramatically reduce "slosh fluctuations" which are inherent with swingarm units.

Sender top-mounts in aluminum, plastic, or stainless steel fuel tanks.

Reed switch materials provide superior corrosion protection, both inside and outside the tank.

Designed for gas, ethanol, diesel, biodiesel and non-potable water use.

Black wire is ground.

For tanks up to 12" deep.

Item#:

MOE35764-10

Manufacturer:

Moeller Marine

80.2500

68.21

EACH

Call to Order

Select to Compare

SENDING UNIT REED SWITCH 14"

Reed switch unit

Reed switch senders dramatically reduce "slosh fluctuations" which are inherent with swingarm units.

Sender top-mounts in aluminum, plastic, or stainless steel fuel tanks.

Reed switch materials provide superior corrosion protection, both inside and outside the tank.

Designed for gas, ethanol, diesel, biodiesel and non-potable water use.

Black wire is ground.

For tanks up to 14" deep.

Item#:

MOE35765-10

Manufacturer:

Moeller Marine

97.5300

82.90

EACH

Qty:

Select to Compare

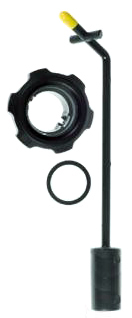

GAUGE ASSEMBLY FOR ULTRA 3-6

Gauge float assembly

Gauge float assembly. For use with Moeller fuel tanks. Manufacturer number: 621001-10. Weight: .5 lb.

Item#:

MOE621001-10

Manufacturer:

Moeller Marine

14.9700

12.72

EACH

Qty:

Select to Compare

GAUGE ASSY FOR ULTRA PBW 12

Gauge float assembly - PBW 12

Gauge float assembly - PBW 12. For use with Moeller fuel tanks. Manufacturer number: 621006-10. Weight: .4 lb.

Item#:

MOE621006-10

Manufacturer:

Moeller Marine

23.1900

19.71

EACH

Qty:

Select to Compare
